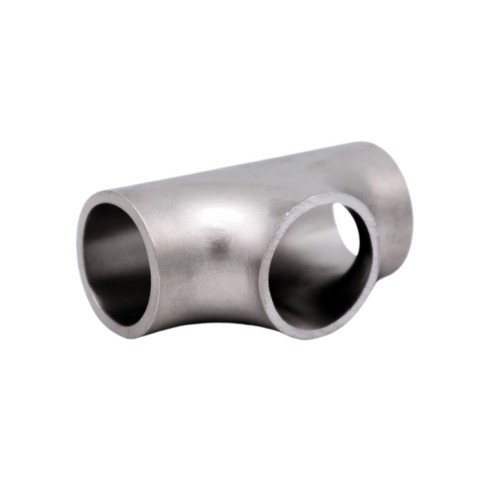

Tee, ISO tube, short, weld on

Made of stainless steel AISI 316.

Download data sheet

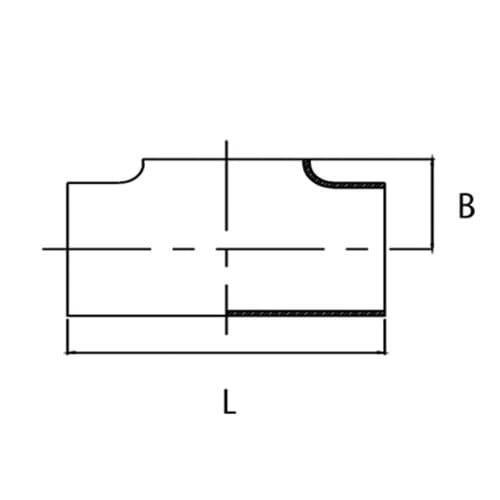

Item number	Nominal dim. mm.	Length L mm.	Height B mm	Thickness mm.	Net weight kg.	Base unit
0103979080	17,2	51,0	15,0	1,60	0,025	PCS
0103979081	17,2	51,0	15,0	2,30	0,080	PCS
0103979100	21,3	51,0	18,0	1,60	0,150	PCS
0103979101	21,3	51,0	18,0	2,60	0,160	PCS
0103979130	26,9	57,0	22,0	2,00	0,170	PCS
0103979131	26,9	57,0	22,0	2,60	0,200	PCS
0103979150	33,7	76,0	26,0	2,00	0,250	PCS
0103979151	33,7	76,0	26,0	2,60	0,300	PCS
0103979170	42,4	95,0	33,0	2,00	0,175	PCS
0103979171	42,4	95,0	33,0	2,60	0,530	PCS
0103979190	48,3	114,0	37,0	2,00	0,490	PCS
0103979191	48,3	114,0	37,0	2,60	0,620	PCS
0103979230	60,3	127,0	44,0	2,00	0,670	PCS
0103979231	60,3	127,0	44,0	2,60	0,850	PCS
0103979250	76,1	152,0	53,0	2,00	0,970	PCS
0103979251	76,1	152,0	53,0	3,60	1,200	PCS
0103979270	88,9	171,0	60,0	2,00	1,240	PCS
0103979271	88,9	171,0	60,0	3,00	1,780	PCS
0103979290	114,3	210,0	67,0	2,00	1,680	PCS
0103979291	114,3	210,0	67,0	3,00	2,260	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
