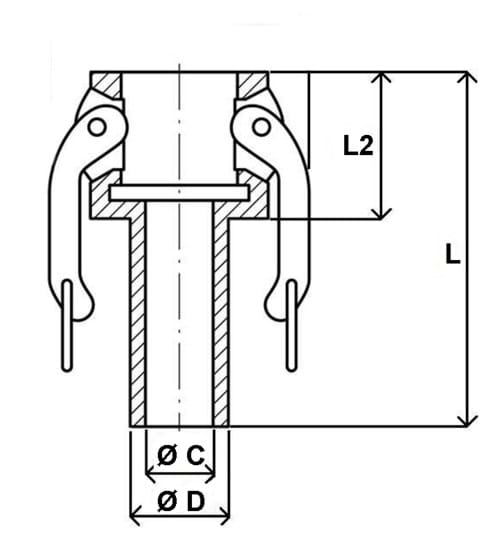

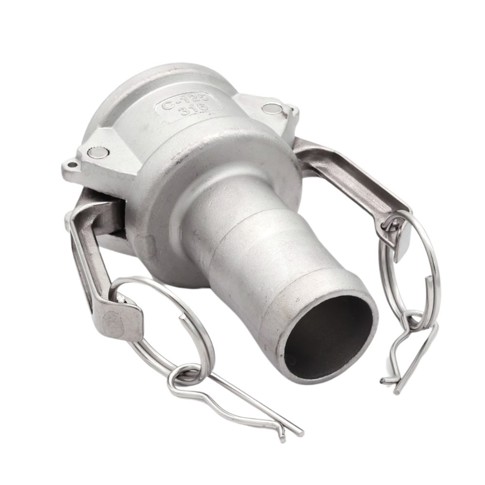

Camlock female coupling, type C

Application:

Camlock female coupling type C with hose connection. Simple and robust maintenance-free coupling that can be assembled to a tight coupling without the use of tools. The female coupling can be used for various liquid and gas lines.

Construction:

Smooth with full passage, allows maximum flow of liquids and gasses.

Quality:

As standard, the couplings are delivered in stainless steel AISI 316, but other materials can be supplied.

Complies with the requirements from:

• US MIL-C-27487
• DIN 2828

Gaskets:

As standard the gaskets are delivered in NBR, but other materials such as Viton and EDPM can also be supplied.

Safety factor:

Safety factor: 3 times working pressure.
