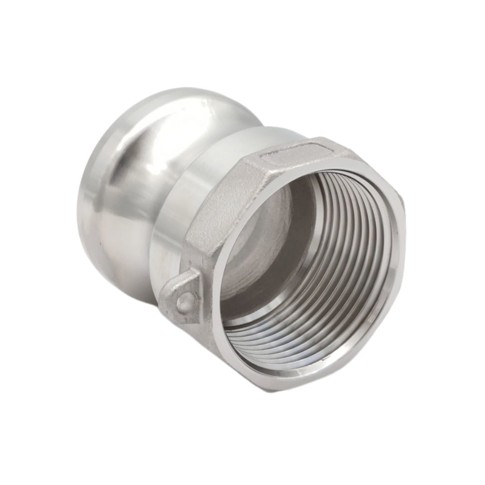

Camlock coupling sleeve, type A

Application:

Camlock coupling sleeve, type A. Simple and robust maintenance-free coupling that can be assembled into a tight coupling without the use of tools. The coupling sleeve can be used for various liquid or gas lines.

Construction:

Smooth with full passage, allows maximum flow of liquids and gasses.
Female/internal BSPP thread.

Quality:

As standard, the coupling is supplied in stainless steel AISI 316, but it is also available in other materials.

Complies with the requirements from:

  • US MIL-C-27487
  • DIN 2828

Safety factor:

Safety factor: 3 times working pressure.

Download data sheet

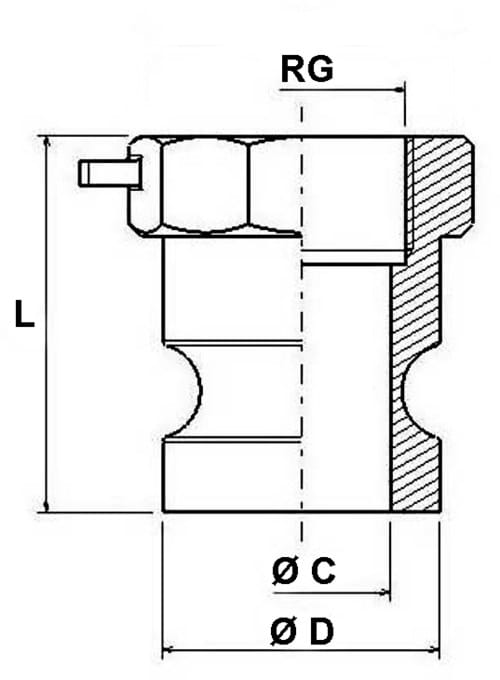

Item number Nom. dim. - DN Connection
RG
C dia.
mm.
D dia.
mm.
Length L
mm.
Working pressure
bar
Net weight
kg.
Base unit Quantity
0472402012 12 1/2" 15,0 24,0 38,0 10,0 0,070 PCS
0472402015 20 1/2" 21,0 32,0 38,0 17,0 0,130 PCS
0472402020 20 3/4" 21,0 32,0 38,0 17,0 0,130 PCS
0472402025 25 1" 24,0 37,0 48,0 17,0 0,160 PCS
0472402032 32 1 1/4" 28,5 45,0 56,0 17,0 0,240 PCS
0472402040 40 1 1/2" 36,0 54,0 60,0 17,0 0,350 PCS
0472402050 50 2" 45,0 63,0 64,0 17,0 0,460 PCS
0472402065 65 2 1/2" 56,5 76,0 87,0 8,0 1,000 PCS
0472402080 80 3" 73,0 92,0 73,0 8,0 1,270 PCS
0472402090 100 4" 98,0 120,0 78,0 6,0 1,420 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
