Camlock coupling, type E, hose tail

Application:

Camlock coupling connection for clamp jaws, Type E, simple and robust maintenance-free coupling that can be assembled to a tight coupling without the use of tools. The coupling connection can be used for various liquid and gas lines.

Construction:

Smooth with full passage, allows maximum flow of liquids and gasses.

Quality:

As standard the couplings are delivered in stainless steel AISI 316, but other materials can be supplied.

Complies with the requirements from US MIL-C-27487
DIN 2828

Safety factor:

Safety factor: 3 times working pressure.

Download data sheet

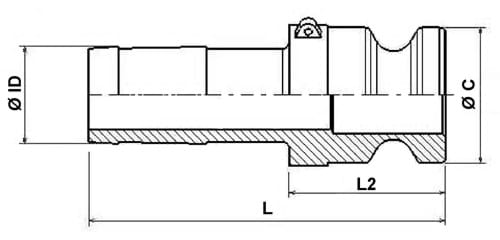

Item number	Nom. dim. - DN	C dia. mm.	Length L mm.	Ø ID hose mm.	Installation dim. L2 mm	Working pressure bar	Net weight kg.	Base unit
0472442012	12	24,0	73,0	13,0	32,0	10,0	0,070	PCS
0472442020	20	32,0	86,5	19,0	37,7	17,0	0,150	PCS
0472442025	25	37,0	84,0	25,0	38,0	17,0	0,250	PCS
0472442032	32	45,6	108,8	32,0	48,6	17,0	0,390	PCS
0472442040	40	53,0	119,6	38,0	67,2	17,0	0,560	PCS
0472442050	50	63,0	130,5	51,0	52,5	17,0	0,760	PCS
0472442065	65	75,8	139,5	63,0	59,5	8,0	1,080	PCS
0472442080	80	91,6	155,0	76,0	59,0	8,0	1,850	PCS
0472442090	100	119,4	164,0	102,0	65,0	6,0	3,110	PCS

Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
