Camlock coupling, type F

Application:

Camlock coupling nipple, Type F, simple and robust maintenance-free coupling that can be assembled to a tight coupling without the use of tools. The coupling nipple can be used for various liquid and gas lines.

Construction:

Smooth with full passage, allows maximum flow of liquids and gasses.
External BSPT threaded connection.

Quality:

As standard, the coupling is supplied in stainless steel AISI 316, but it is also available in other materials.

Complies with the requirements from:

  • US MIL-C-27487
  • DIN 2828

Safety factor:

Safety factor: 3 times working pressure.

Download data sheet

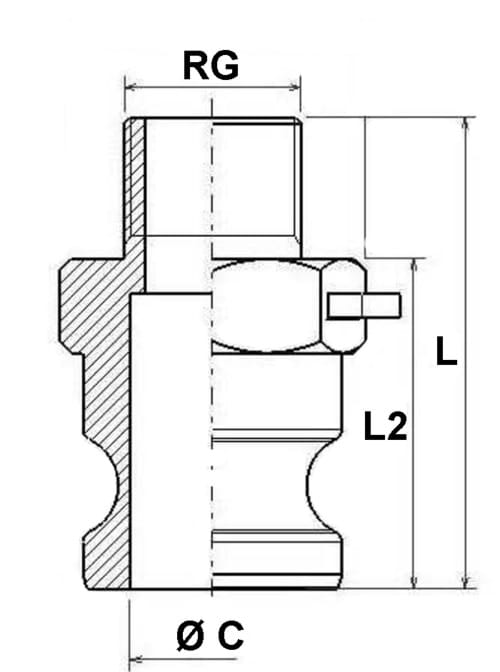

Item number Nom. dim. - DN Connection
RG
C dia.
mm.
Length L
mm.
Installation dim. L2
mm
Working pressure
bar
Net weight
kg.
Base unit Quantity
0472452012 12 1/2" 16,0 48,0 33,0 10,0 0,100 PCS
0472452015 20 1/2" 21,0 56,0 38,0 17,0 0,170 PCS
0472452020 20 3/4" 21,0 56,0 38,0 17,0 0,170 PCS
0472452025 25 1" 24,0 72,0 48,0 17,0 0,270 PCS
0472452032 32 1 1/4" 28,5 80 56,0 17,0 0,470 PCS
0472452040 40 1 1/2" 36,0 84,0 60,0 17,0 0,590 PCS
0472452050 50 2" 45,0 88,0 62,0 17,0 0,860 PCS
0472452065 65 2 1/2" 56,5 100,0 69,0 8,0 1,500 PCS
0472452080 80 3" 73,0 106,0 73,0 8,0 1,620 PCS
0472452090 100 4" 98,0 114,0 78,0 6,0 2,970 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
