Camlock dust cover, type DC

Application:

Camlock dust cover, Type DC, female part. Simple and robust maintenance-free coupling that can be assembled to a tight coupling without the use of tools. The dust cover can be used for various liquid and gas lines.

Construction:

Made of stainless steel AISI 316.

Quality:

As standard the couplings are delivered in stainless steel AISI 316, but other materials
can be suppled.

  • Complies with the requirements from US MIL-C-27487
  • DIN 2828

Safety factor:

Safety factor: 3 times working pressure.

Download data sheet

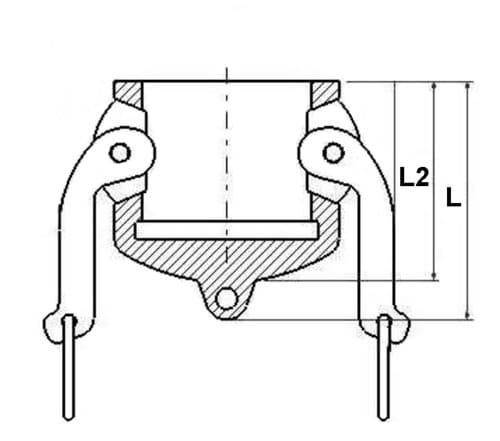

Item number Nom. dim. - DN Length L
mm.		 Installation dim. L2
mm		 Working pressure
bar		 Net weight
kg.		 Base unit Quantity
0472462012 12 42,0 32,5 10,0 0,100 PCS
0472462020 20 45,0 35,0 17,0 0,130 PCS
0472462025 25 54 42,0 17,0 0,200 PCS
0472462032 32 65,0 51,0 17,0 0,540 PCS
0472462040 40 69,0 52,0 17,0 0,650 PCS
0472462050 50 78,0 59,0 17,0 0,850 PCS
0472462065 65 83,0 64,0 8,0 1,15 PCS
0472462080 80,0 88,0 65,0 8 1,20 PCS
0472462090 100 94,0 70,0 6,0 2,590 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
