Camlock dust plug, type DP

Application:

Camlock plug, Type DP, male part. Simple and robust maintenance-free plug, that can be assembled to a tight coupling without the use of tools. The plug can be used for various liquid and gas lines.

Construction:

Made of stainless steel AISI 316.

Quality:

As standard the couplings are delivered in stainless steel AISI 316, but other materials
can be suppled.

  • Complies with the requirements from US MIL-C-27487
  • DIN 2828

Safety factor:

Safety factor: 3 times working pressure.

Download data sheet

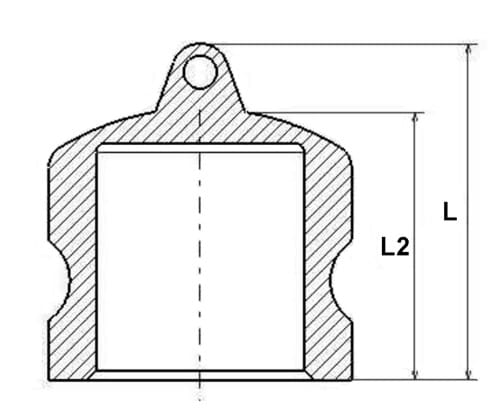

Item number Nom. dim. - DN Installation dim. L2
mm		 Length L
mm.		 Net weight
kg.		 Working pressure
bar		 Base unit Quantity
0472472012 12 25,0 35,0 0,080 17,0 PCS
0472472020 20 25,0 37,0 0,080 17,0 PCS
0472472025 25 32,0 44,0 0,140 17,0 PCS
0472472040 40 44,0 64,0 0,340 17,0 PCS
0472472050 50 48,0 68,0 0,520 17,0 PCS
0472472065 65 50,0 70,0 0,690 8,0 PCS
0472472080 80,0 56,0 80,0 0,80 8,0 PCS
0472472100 100 56,0 80,0 0,90 8,0 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
