Camlock female coupling, type B

Application:

Camlock female coupling type B. Simple and robust maintenance-free coupling that can be assembled to a tight coupling without the use of tools. The coupling housing can be used for various liquid and gas lines.

Construction:

Smooth with full passage, allows for maximum flow of liquids and gasses.
External BSPP threaded connection.

Quality:

As standard, the coupling is supplied in stainless steel AISI 316, but it is also available in other materials.

Complies with the requirements from:

  • US MIL-C-27487
  • DIN 2828

Gasket:

The gasket comes in NBR as standard, but is also available in other materials such as Viton and EDPM.

Safety factor:

Safety factor: 3 times working pressure.

Download data sheet

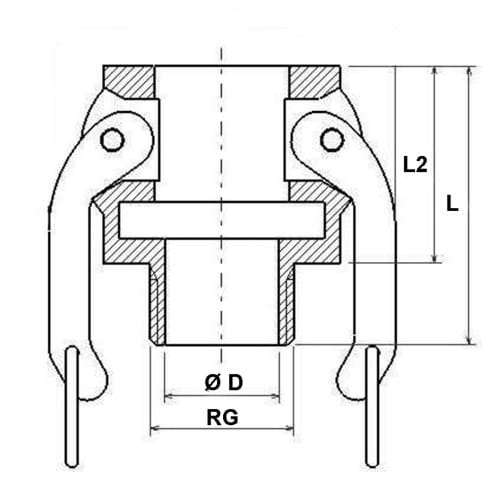

Item number Nom. dim. - DN Connection
RG
Length L
mm.
D Dia.
mm.
Installation dim. L2
mm
Working pressure
bar
Net weight
kg.
Base unit Quantity
0472412015 12 1/2" 45,0 14,5 30,0 10,0 0,140 PCS
0472412020 20 3/4" 52 19,0 32,0 17,0 0,230 PCS
0472412025 25 1" 62 26,0 40,0 17,0 0,330 PCS
0472412032 32 1 1/4" 68,0 33,0 48,0 17,0 0,600 PCS
0472412040 40 1 1/2" 71,0 39,0 49,0 17,0 0,670 PCS
0472412050 50 2" 78,0 50,0 54,0 17,0 0,900 PCS
0472412065 65 2 1/2" 85,0 61,0 59,0 8,0 1,240 PCS
0472412080 80 3" 90,0 75,0 60,0 8,0 1,590 PCS
0472412090 100 4" 101,0 98,0 62,0 6,0 2,560 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
