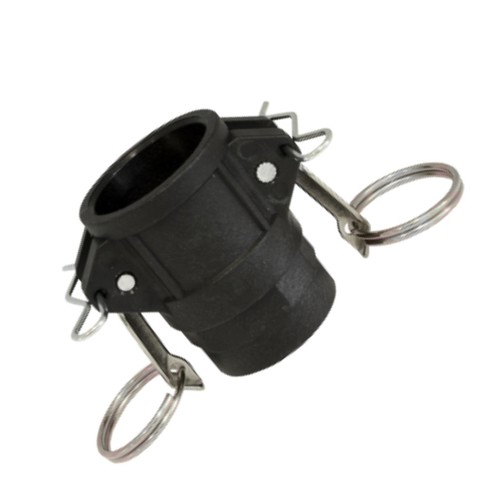

Camlock female coupling, type D, polypropylene

Application:

Camlock female coupling, type D, polypropylene (PP) with hose connection is a simple and robust maintenance-free coupling that can be assembled to a tight coupling without using tools. Suitable for various liquid and gas lines.

Construction:

  • Made from black polypropylene with stainless steel cam arms and pins
  • Internal BSPP threaded connection
  • Smooth with full passage, ensures optimal flow of liquids and gasses
  • Excellent chemical resistance to aggressive chemicals and solvents

Quality:

The coupling comes in black polypropylene but is also available in other materials.

Complies with the requirements from DIN 2828.

Gasket:

As standard, the gasket is supplied in NBR, but it is also available in other materials such as Viton and EDPM.

Safety factor:

3 times working pressure.

Temperature:

Temperature range from -20°C to +90°C.

Download data sheet
Item number Nom. dim. - DN Connection
RG
Length L
mm.
Installation dim. L2
mm
Working pressure
bar
Base unit Net weight
kg.
Quantity
0472582012 DN12 1/2" 54,0 34,0 10,0 PCS 0,05
0472582020 DN20 3/4" 52 34,0 10,0 PCS 0,07
0472582025 DN25 1" 60 41,0 10,0 PCS 0,11
0472582032 DN32 1 1/4" 70,0 46,0 10,0 PCS 0,16
0472582040 DN40 1 1/2" 72,0 49,0 10,0 PCS 0,18
0472582050 DN50 2" 83,0 55,0 10,0 PCS 0,23
0472582065 DN65 2 1/2" 85,0 56,0 10,0 PCS 0,26
0472582080 DN80 3" 90,0 60,0 10,0 PCS 0,38
0472582100 DN100 4" 92,0 60,0 10,0 PCS 0,72
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
