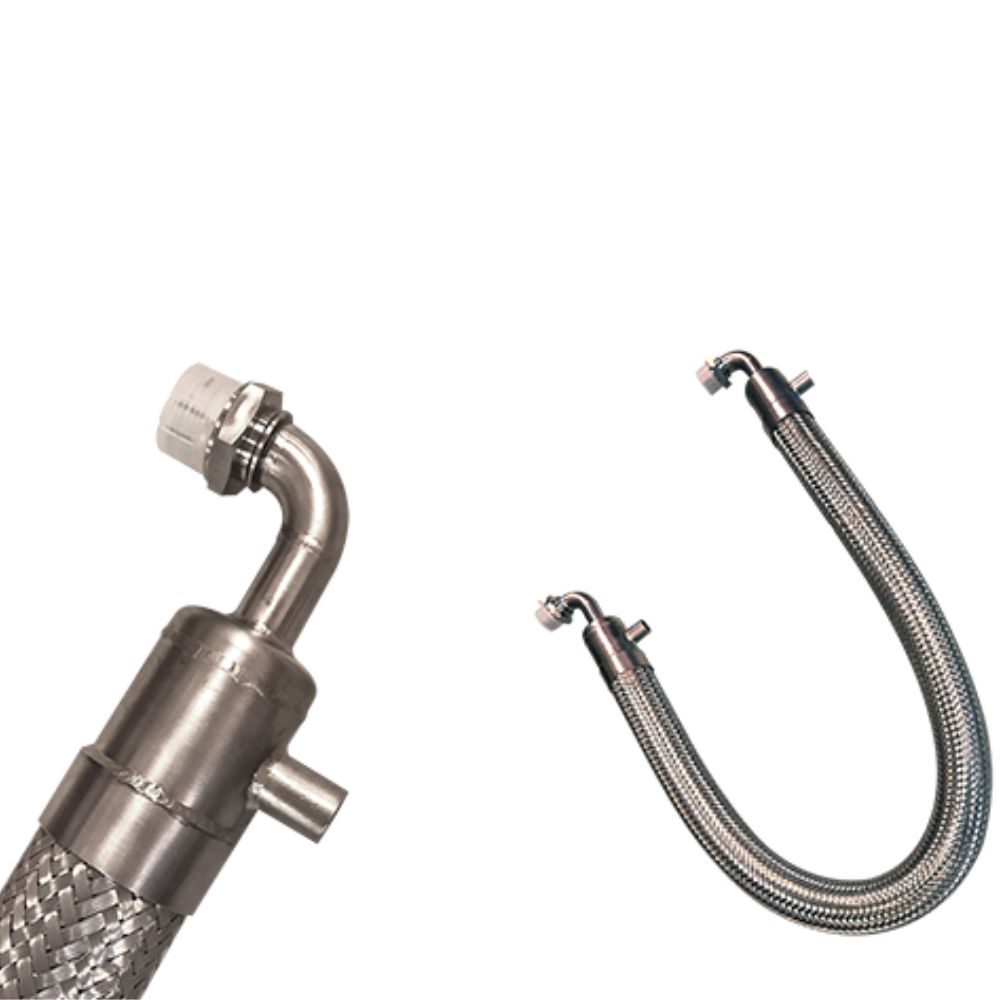

Double-jacket hose

Application:

Suitable for cooling or heating transportation of products.

Construction:

Inner hose through which the product runs. Around the inner hose runs a secondary hose through which a medium can help keep the product cooled or heated.

The volume between the two hoses, as well as the hose types and connections are chosen according to
to the operating conditions. Connecting the media to the secondary hose is done through end fittings.

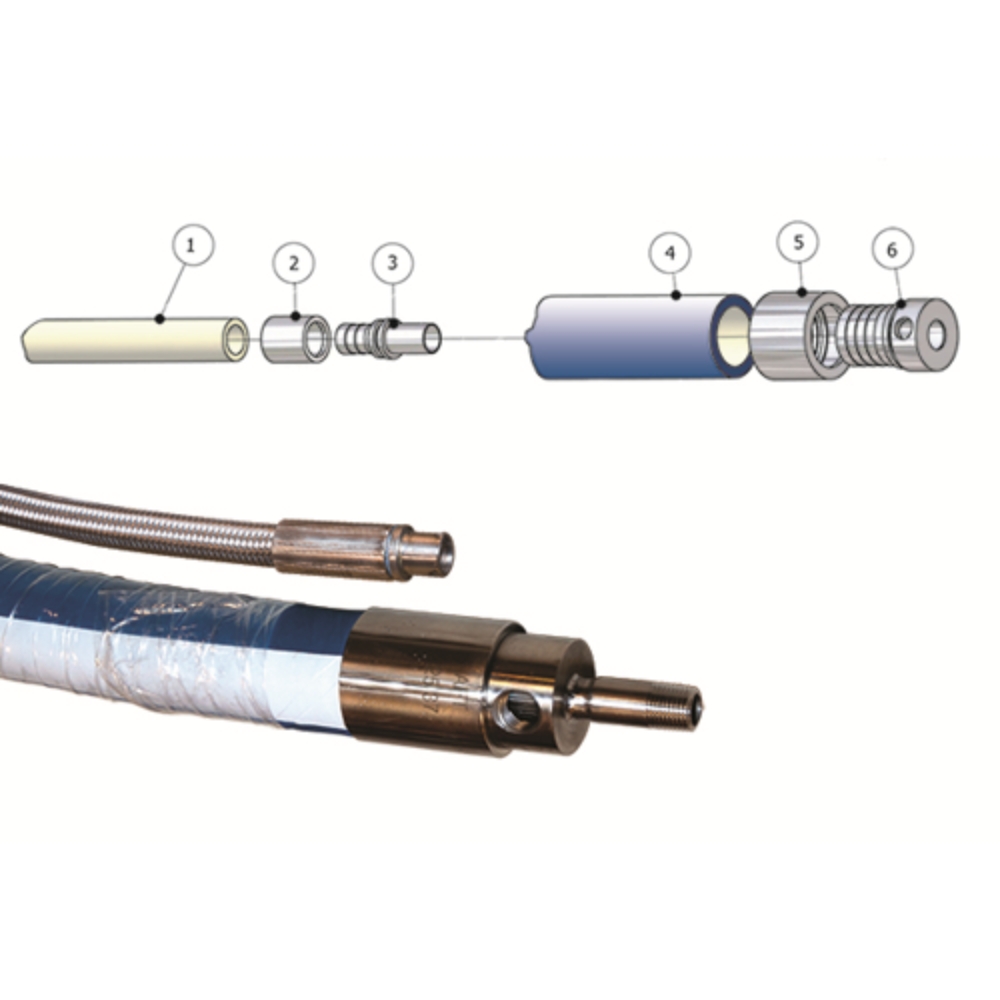

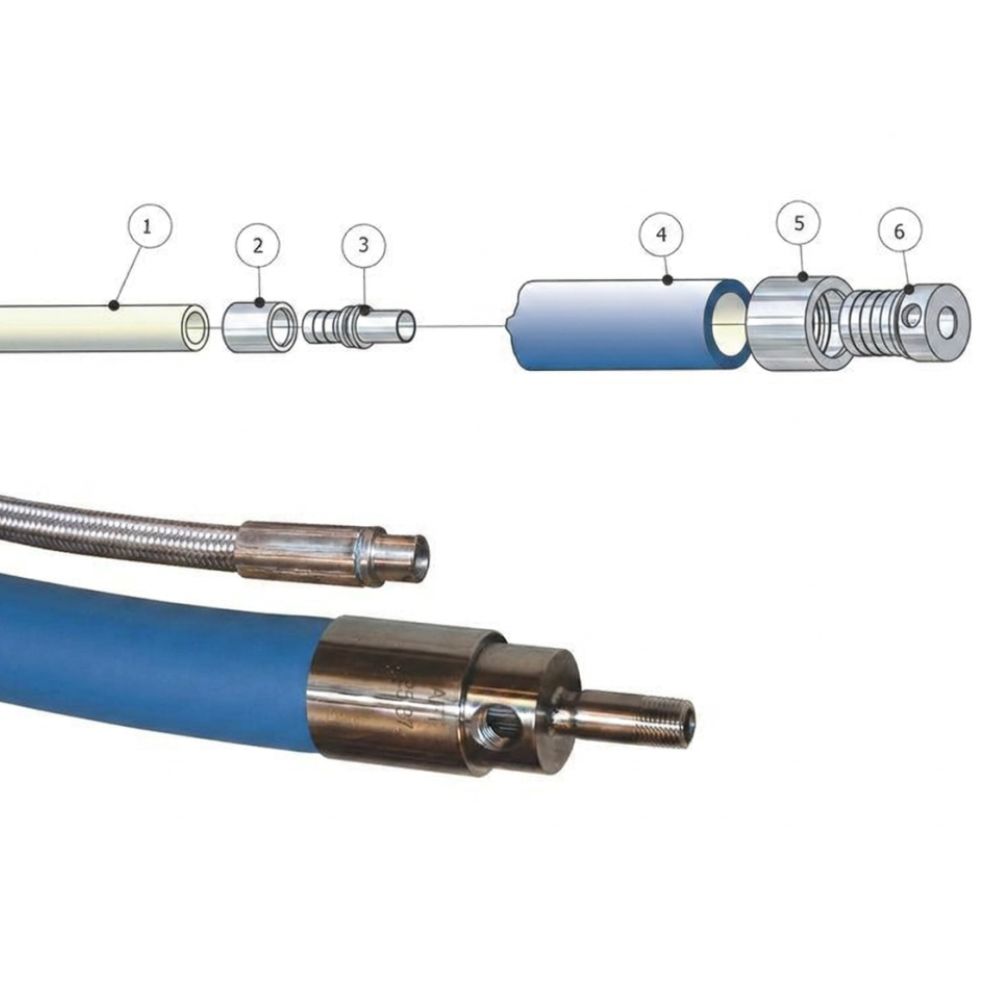

Image:

1. Inner hose
2. Internal press sleeve
3. Connector
4. Outer hose
5. Outer press sleeve
6. Connector

Technical specifications:

Temperature and pressure:

Temperature and pressure depend on which hose types are used in the hose solution.
