Sampling valve without rinsing connection

Application:

This sampling valve is designed for applications that require accurate samples for determining taste, appearance, and microbiological and chemical values. It comes in four different versions with a variety of connection types, including weld-in/weld-on, thread/screw, or clamp-socket versions.

Construction:

  • The Sampling Valve is constructed with a focus on hygiene and cleanability
  • Design confirmed by the EHEDG in 2016 for its excellent cleanability, ensuring that your products will not be contaminated when used properly
  • The valve comes in four different versions with a variety of connection types for a wide range of applications
  • All manually operated variants are available with a lockable handwheel to protect against unauthorized access

Quality:

  • Material in contact with product: Stainless Steel AISI 316L (1.4404)
  • Inner surface roughness ≤ 0.8 µ
  • Seal ring: PTFE

Operating conditions:

  • Operating temperature: max 80 °C
  • Operating pressure: max. 10 bar
  • CIP cleaning up to 90°C for max 30 min.
  • Can be sterilized up to 135°C for max 30 min.
Download data sheet

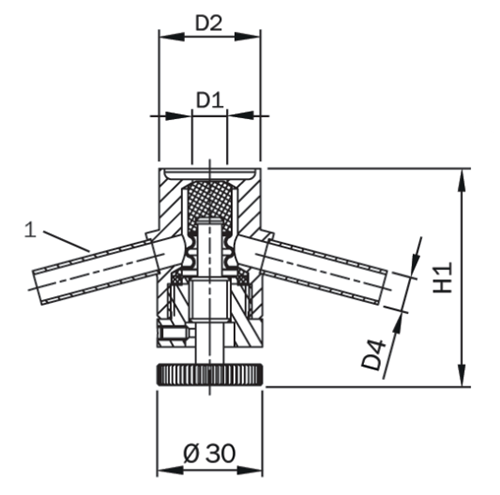

Item number Connection D1 dia.
mm.
D2 dia.
mm.
Dia. mm.
D4
Height - mm. Material type Weight/pcs. - kg. Base unit Quantity
0547010291 Weld-on 10,0 29 x 1,5 10 x 1,0 62,0 AISI 316 L 0,28 PCS
Subject to incorrect product data, variations in images/videos, and price and exchange rate changes.
